Ransomware-as-a-service soon to be renamed Lure-as-a-Service đ
Dubbed Fakesomware by Comae (Also called ExPetr, PetrWrap, NotPetya, DiskCoder).**
TL;DR:** The ransomware was a lure for the media, this variant of Petya is a disguised wiper.
Update1: Few hours later, Kasperskyâs research led to a similar conclusion.
Update2: Added more info on the wiper command & comparative screenshots of the two keys that visually confirms Kasperskyâs finding and why the MBR copy routine didnât make sense.
Whatâs the difference between a wiper and a ransomware ?
The goal of a wiper is to destroy and damage. The goal of a ransomware is to make money. Different intent. Different motive. Different narrative. A ransomware has the ability to restore its modification such as (restoring the MBR like in the 2016 Petya, or decrypting files if the victim pays)âââa wiper would simply destroy and exclude possibilities of restoration.
Yesterday, we provided a preliminary analysis where we demonstrated that the 27th June 2017 version of Petya leveraged SMB exploits ETERNALBLUE and ETERNALROMANCE.
Today, we spent more time to understand how the files could be retrieved and how the actual MBR and MFT was being encoded.
Sloppy sector blocks modifications đ
Fortunately, there are multiple excellent existing analysis from 2016 Petya that have been published last year in multiple languages such as French, or English [1, 2]. Today, Microsoft published a very descriptive analysis of the 2017 Petya but for some reasons missed the below part.
- [542a38bf52afa6a4a008089a6fbf22c9d68ef5d6c634dd2c0773d859a8ae2bbf] (https://www.virustotal.com/en/file/542a38bf52afa6a4a008089a6fbf22c9d68ef5d6c634dd2c0773d859a8ae2bbf/analysis/)(2016)
- [027cc450ef5f8c5f653329641ec1fed91f694e0d229928963b30f6b0d7d3a745] (https://www.virustotal.com/en/file/027cc450ef5f8c5f653329641ec1fed91f694e0d229928963b30f6b0d7d3a745/analysis/)(27th 2017)
After comparing both implementation, we noticed that the current implementation that massively infected multiple entities in Ukraine was in fact a wiper which just trashed the 18 first sector blocks of the disk while replicating itself. Some noted that this was mainly slack space as only the first sector is relevant for most of machinesâââexcept few exceptions. I mainly note that since this can be used in some scenarios, this is why I consider it a sloppy overwrite.

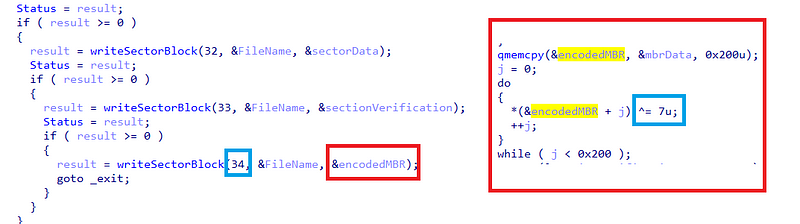

The first sector block is being reversibly encoded by XORed with the 0x7 key and saved later in the 34th block. But since it replaces it with a new bootloader ([41f75e5f527a3307b246cadf344d2e07f50508cf75c9c2ef8dc3bae763d18ccf](https://twitter.com/msuiche/status/880041005638180864))
of 0x22B1 bytes it basically sets v19
to 0x13 (19).
16.0: kd:x86> ? 0x22B1 - (0x22B1 & 0x1FF) + 0x400 Evaluate expression: 9728 = 00002600 16.0: kd:x86> ? 0x00002600 >> 9 Evaluate expression: 19 = 00000013
That would mean that 18 sector blocks following the first sector block are being purposely overwritten, they are not read or saved anywhere. Whereas the original 2016 Petya version correctly reads each sector block and reversibly encode them.
2016 Petya modifies the disk in a way where it can actually revert its changes. Whereas, 2017 Petya does permanent and irreversible damages to the disk.

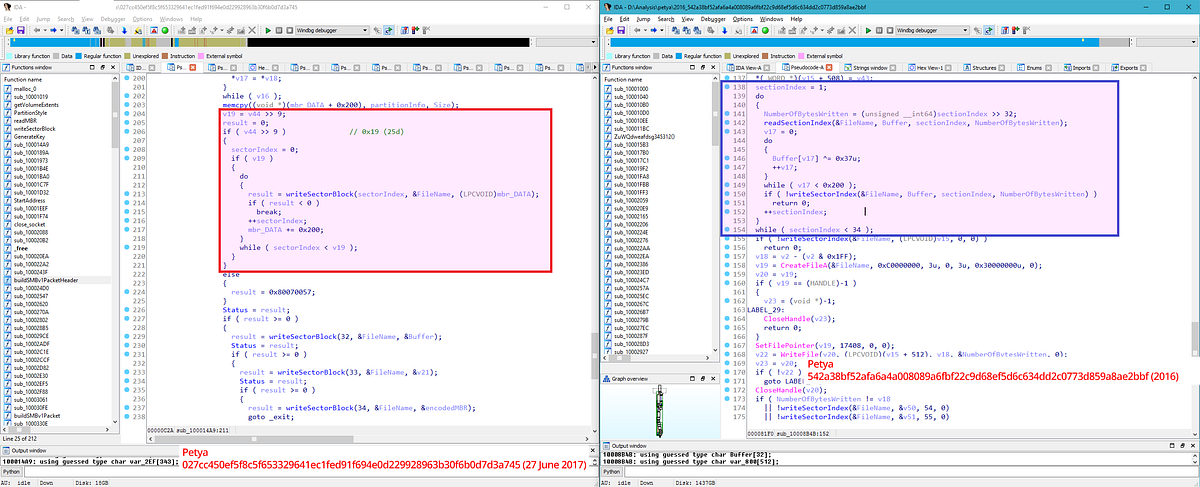

On the left, we can see the current version of Petya clearly got rewritten to be a wiper and not a actual ransomware.
Left (2017 Petya) with the wiper codeâââRight (2016 Petya) which reads and encode sector blocks.
This means the MBR section of the disk is purposely over written by the new bootloader [41f75e5f527a3307b246cadf344d2e07f50508cf75c9c2ef8dc3bae763d18ccf](https://twitter.com/msuiche/status/880041005638180864).
No more email address for payment đ
Moreover, the payment email address isnât accessible anymore if victims would happen to send payments.
Wiper function executed under some conditions đ

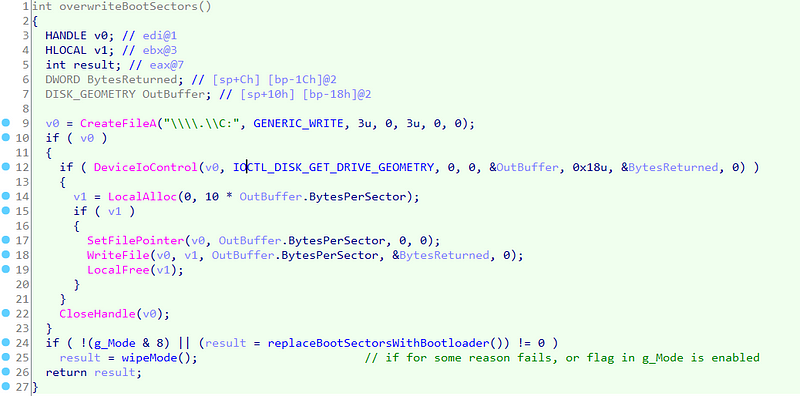

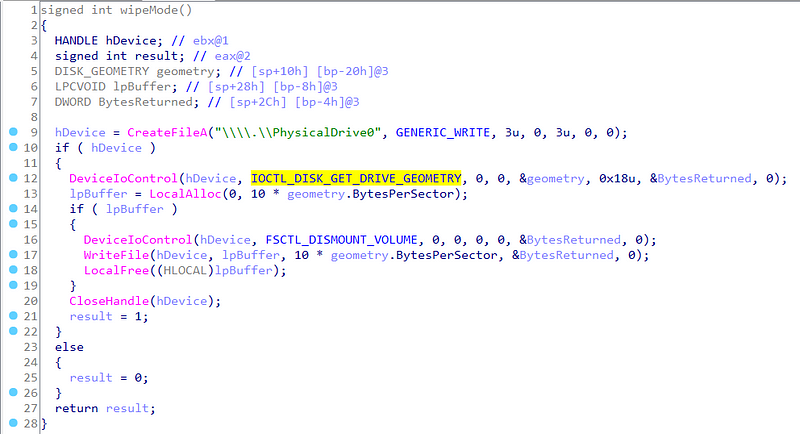

After further analysis, (see Appendix A) we also discovered that the attackers implemented a function that wipes the first 10 sectors of \\\\.\\PhysicalDrive0
including the MBR under two conditions:
- If the hash command computed from a running process name ("avp.exeâ) returns
0x2E214B44
- If the function that replaces the actual MBR returns an error. Probably as a generic way to detect EDR trying to prevent bootloader modifications.
The hash command generation, and flag gestion for the different modes can be found in our decompiled version here.
UPDATE: After further research, we determined that the mysterious hash command is generated from lower case âavp.exeâ process name which correspond to the Kaspersky Anti-Virus.
Key inconsistency đ
As Kaspersky reported, the key generated itself on the screen is fake and randomly generated. After looking more at how the encryption file key was generated, we also notice an inconsistency that reinforces this statement. This can also be proven by comparing âinstallation keyâ displayed in the README.txt and on the screenâââas you can see the format is clearly different.

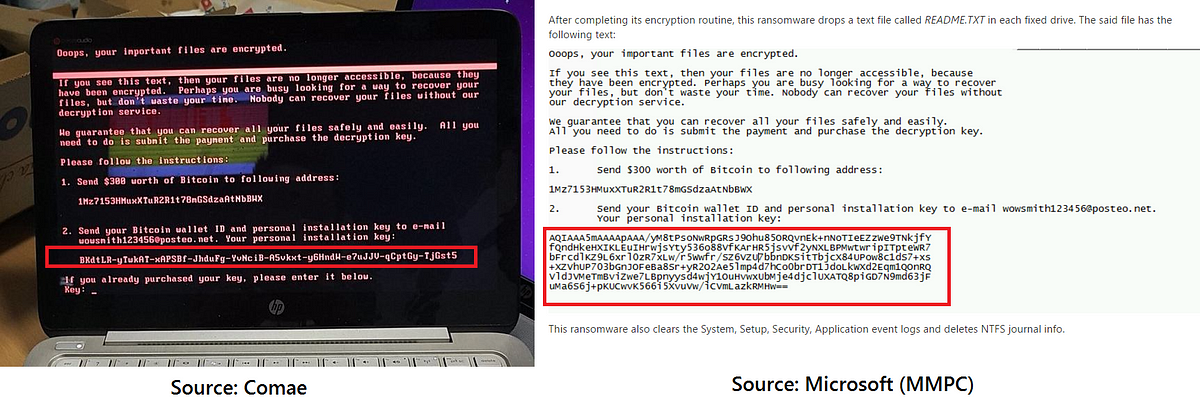

On the left is the display by the MBR code we described above as sloppy written, on the right the content of the README.txt with an actual key generated by the ransomware.
This means that assuming a decryptor would come to be released, the input required would have to come through the README.txtââânot from the screen.
Buggy encryption process đ
BOOL WINAPI CryptEncrypt( _In_ HCRYPTKEY hKey, _In_ HCRYPTHASH hHash, _In_ BOOL Final, _In_ DWORD dwFlags, _Inout_ BYTE *pbData, _Inout_ DWORD *pdwDataLen, _In_ DWORD dwBufLen );
As described by Ladislav Zezula, the boolean Final
flag in the function CryptEncrypt
is incorrectly initialized during the encryption.
Salsa20 Key sets to âinvalidâ đ
The Salsa20 key appears to have been modified with an hexadecimal editor and not recompiled. The new value is also set to the cryptic value â-1nvalid s3ct-idâ which can be read as âinvalid secret identifierâ.
Conclusion đ
We believe the ransomware was in fact a lure to control the media narrative, especially after the WannaCry incidents to attract the attention on some mysterious hacker group rather than a national state attacker like we have seen in the past in cases that involved wipers such as Shamoon.
The attacker took an existing ransomware which he repackaged.
Lately, the number of attacks against Ukraine increased from Power Grids being shut down to the car a top military intelligence officer exploding yesterdayâââthe day Petya.2017 infected Ukraine.
The fact of pretending to be a ransomware while being in fact a nation state attackâââespecially since WannaCry proved that widely spread ransomware arenât financially profitableâââis in our opinion a very subtle way from the attacker to control the narrative of the attack.
Additional note, come join Kaspersky & Comae tomorrow Thursday 29 @ 10AM EST for a technical webinar on Petyaââno sales pitch. We promise ! Only technical stuff.
